Product Details
Place of Origin: China
Model Number: DJ101IA-07A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
10.1inch |
Resolution: |
1280(RGB)×720, WXGA |
Luminance: |
750 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 40 Pins Connector |
Operating Temp.:: |
-30 ~ 85 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industry And Vehicle |
Size: |
10.1inch |
Resolution: |
1280(RGB)×720, WXGA |
Luminance: |
750 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 40 Pins Connector |
Operating Temp.:: |
-30 ~ 85 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industry And Vehicle |

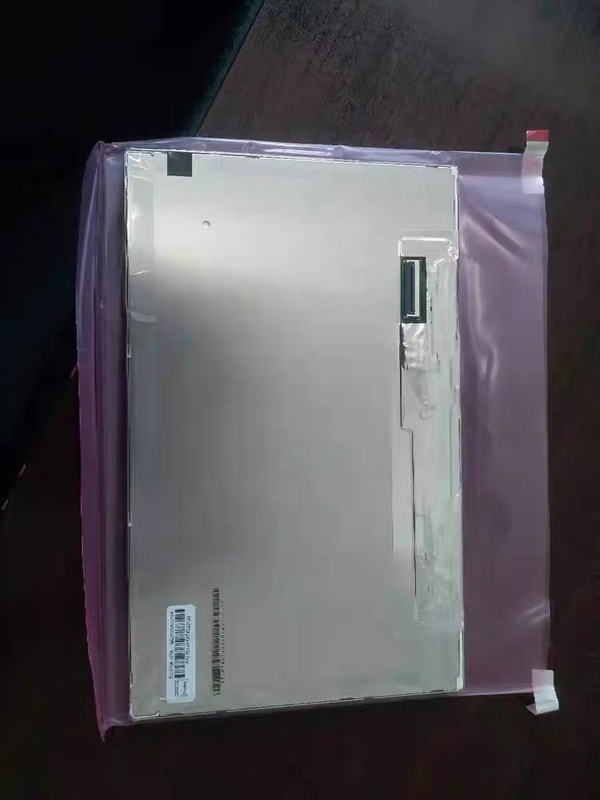

DJ101IA-07A is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Outdoor High Brightness, Automotive Display etc.
