Product Details
Place of Origin: China
Model Number: P1210XGF1MA00
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
12.1inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
1300 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Vibration Level:: |
2.0G (19.6 M/s²) |
Application: |
Industry And Vehicle |
Size: |
12.1inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
1300 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Vibration Level:: |
2.0G (19.6 M/s²) |
Application: |
Industry And Vehicle |

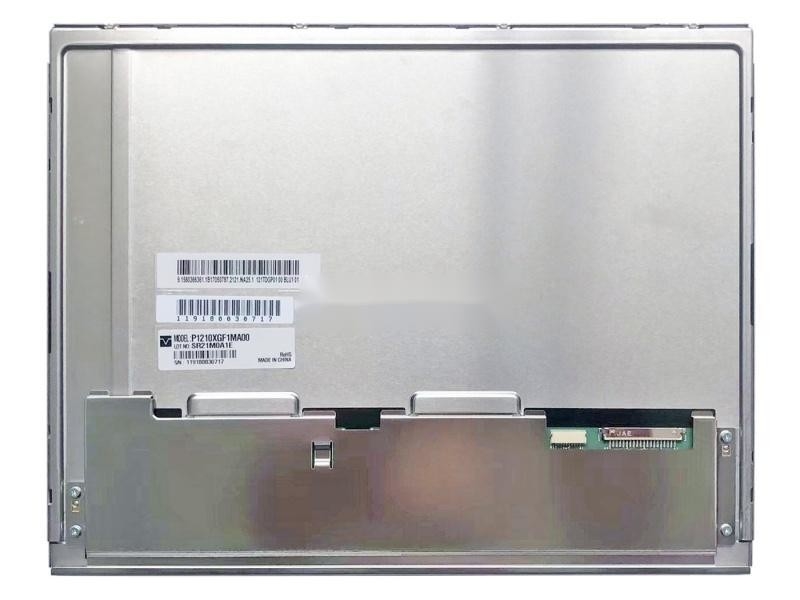

12.1Inch 1024(RGB)×768, XGA , 1300Nits brightness Lcd Panel P1210XGF1MA00 LVDS Interface for Industrial use
The P1210XGF1MA00 (Alias: TM121TDGP01-00) is a 12.1 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: sRGB, Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness, Automotive Display etc.
| Outline(mm) |
|---|
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| 260.5(W)×203(H)×10(D) |
| 1300 (Typ.)(cd/m²) |
| 88/88/88/88 (Typ.)(CR≥10) |
| Symmetry |
| 262K/16.7M 72% NTSC |
| 550g (Typ.) |
| 60Hz |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| Antiglare |
| 1000 : 1 (Typ.) (TM) |
| SFT, Normally Black, Transmissive |
| 25 (Typ.)(Tr+Td) ms |
| 7S4P WLED , 100K hours , No Driver |
| Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|---|---|
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
