Product Details
Place of Origin: China
Model Number: G104XCE-LH1
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
10.4inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
1000 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temp.:: |
-30 ~ 85 °C |
Storage Temp: |
-30 ~ 85 °C |
Application: |
Industry And Vehicle |
Size: |
10.4inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
1000 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temp.:: |
-30 ~ 85 °C |
Storage Temp: |
-30 ~ 85 °C |
Application: |
Industry And Vehicle |

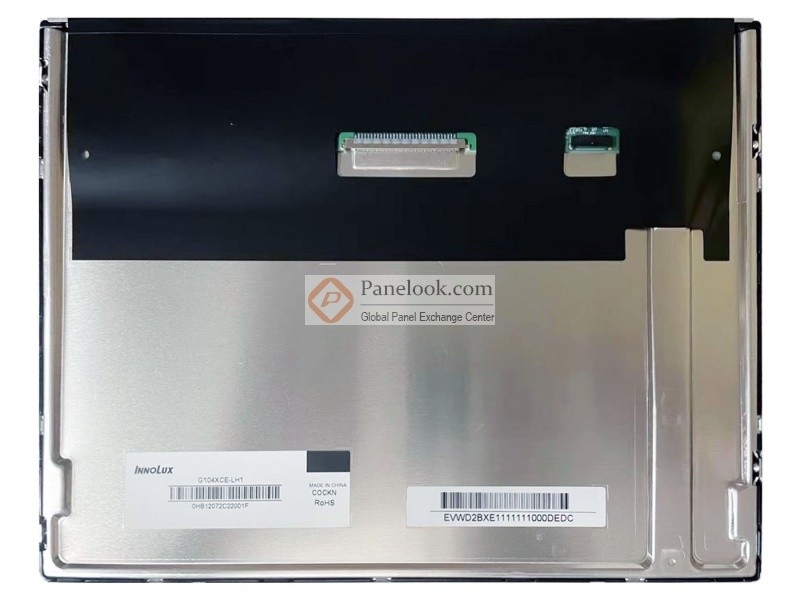

10.4Inch 1024(RGB)×768, XGA , 1000Nits brightness Lcd Panel G104XCE-LH1 LVDS Interface for Industrial use
G104XCE-LH1 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Ultra High Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness etc
