Product Details
Place of Origin: China
Model Number: P1330FHF1MA00
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
13.3inch |
Resolution: |
1920(RGB)×1080, FHD |
Luminance: |
1000 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 40 Pins Connector |
Operating Temp.:: |
-20 ~ 70 °C |
Storage Temp: |
-30 ~ 80 °C |
Application: |
Industry And Vehicle |
Size: |
13.3inch |
Resolution: |
1920(RGB)×1080, FHD |
Luminance: |
1000 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 40 Pins Connector |
Operating Temp.:: |
-20 ~ 70 °C |
Storage Temp: |
-30 ~ 80 °C |
Application: |
Industry And Vehicle |

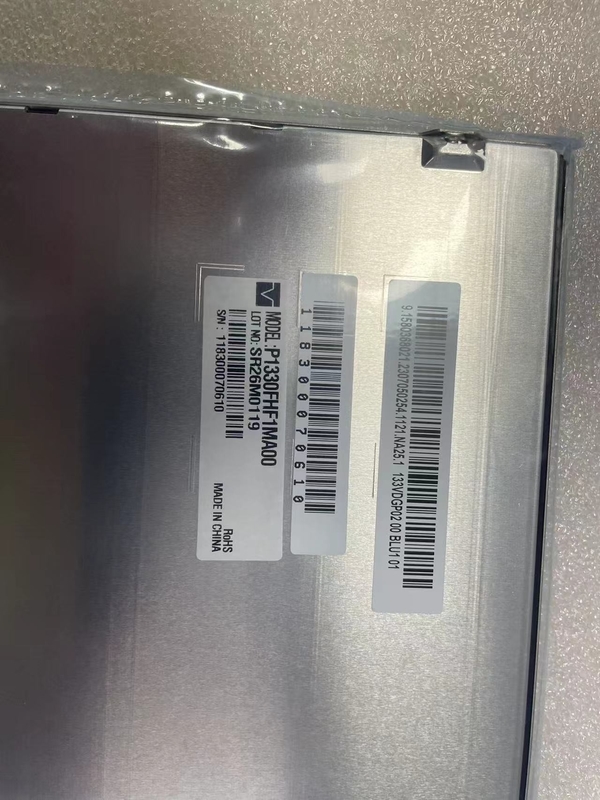

13.3Inch 1920(RGB)×1080, FHD , 1000Nits brightness Lcd Panel P1330FHF1MA00 LVDS Interface for Industrial use
P1330FHF1MA00 (Alias: TM133VDGP02-00) is a 13.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: Ultra High Brightness, WLED Backlight, Life ≥ 50K hours . Based on its features, JB recommend that this model be applied to Industrial etc.
0 Compatible| Outline Size | 308(W)×186(H) ×9.7(D) mm | Surface | Hard coating |
|---|---|---|---|
| Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Display Mode | SFT, Normally Black, Transmissive  |
| Best View on | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC | Lamp Type | WLED , 50K hours , Without Driver |
| Frequency | - | Touch Screen | Without |
| Panel Weight | 561g (Typ.) | Application | |
| Signal Interface | LVDS (2 ch, 8-bit) , 40 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
