Product Details
Place of Origin: China
Model Number: P0650VGF1MA00
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
6.5inch |
Resolution: |
640(RGB)×480, VGA |
Luminance: |
1200 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industrial Application |
Size: |
6.5inch |
Resolution: |
640(RGB)×480, VGA |
Luminance: |
1200 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industrial Application |
6.5Inch 640(RGB)×480, VGA , 1200Nits brightness Lcd Panel P0650VGF1MA00 for Industrial Application

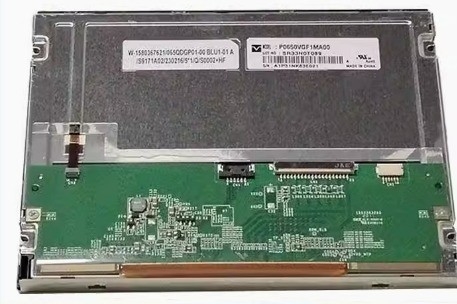

The P0650VGF1MA00 (Alias: TM065QDGP02-00) is a 6.5 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness, Automotive Display etc.
