Product Details
Place of Origin: China
Model Number: P0650VGF1MA10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
6.5inch |
Resolution: |
640(RGB)×480, VGA |
Luminance: |
800 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industrial Application |
Size: |
6.5inch |
Resolution: |
640(RGB)×480, VGA |
Luminance: |
800 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-30 ~ 80 °C |
Storage Temp: |
-40 ~ 90 °C |
Application: |
Industrial Application |
6.5Inch 640(RGB)×480, VGA , 800Nits brightness Lcd Panel P0650VGF1MA10 for Industrial Application

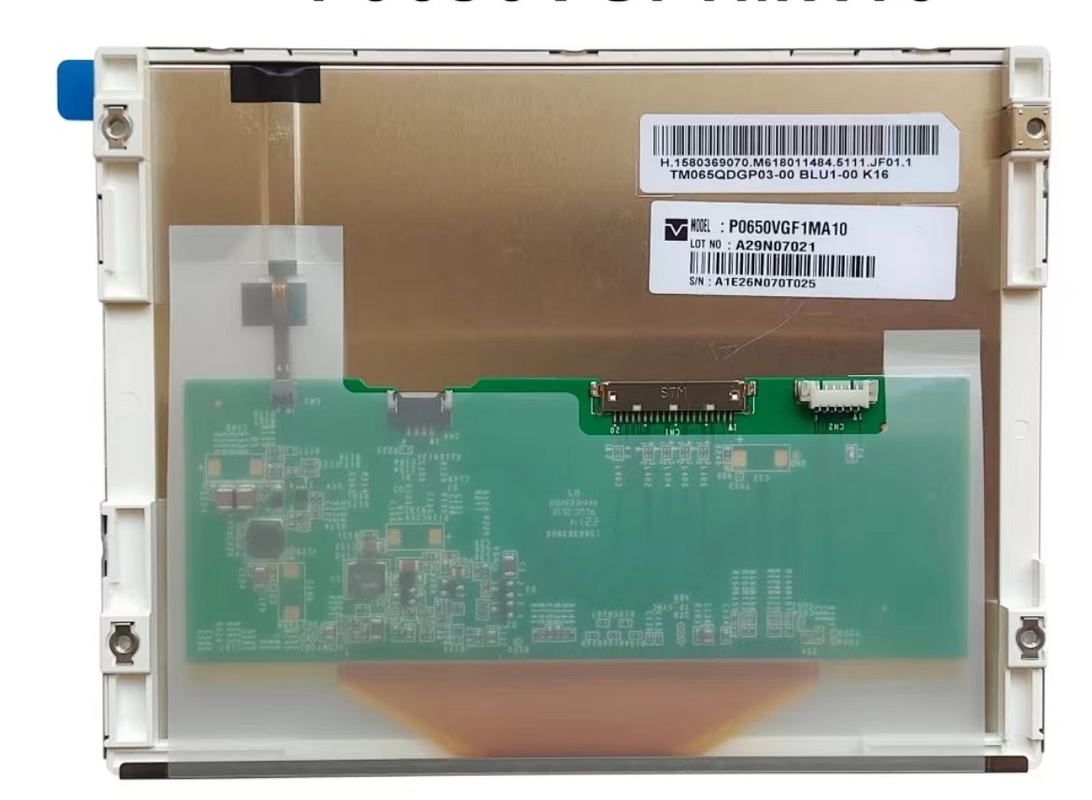

P0650VGF1MA10 (Alias: TM065QDGP03-00) is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: sRGB, Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, JINGBAO recommend that this model be applied to Industrial, Outdoor High Brightness, Automotive Display
