24Inch Stretched Bar Display 1920×360 QV240FBM-N10 Digital TFT LCD 300cd/M2

Name: 24Inch Stretched Bar Display 1920×360 QV240FBM-N10 Digital TFT LCD 300cd/M2
Brand: JINGBAO INTERNATIONAL CO.,LIMITED
SKU: QV240FBM-N10
Availability: InStock

Product Details

Place of Origin: China

Model Number: QV240FBM-N10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: factory original packing

Delivery Time: 3-5 working days

Payment Terms: T/T

Supply Ability: 5000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                24Inch stretched bar display, stretched bar display 1920×360, Digital TFT LCD 300cd/m2


Size:	24Inch	Resolution:	1920(RGB)×360
Luminance:	300 Cd/m² (Typ.)	Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)
Interface Type:	LVDS (2 Ch, 8-bit) , 30 Pins Connector	Operating Temp.:	0 ~ 50 °C
Application:	Digital Signage

Size:	24Inch
Resolution:	1920(RGB)×360
Luminance:	300 Cd/m² (Typ.)
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)
Interface Type:	LVDS (2 Ch, 8-bit) , 30 Pins Connector
Operating Temp.:	0 ~ 50 °C
Application:	Digital Signage

24Inch Stretched Bar Display 1920×360 QV240FBM-N10 Digital TFT LCD 300cd/M2

24Inch Resolution 1920(RGB)×360 Lcd Panel QV240FBM-N10 for Digital Signage

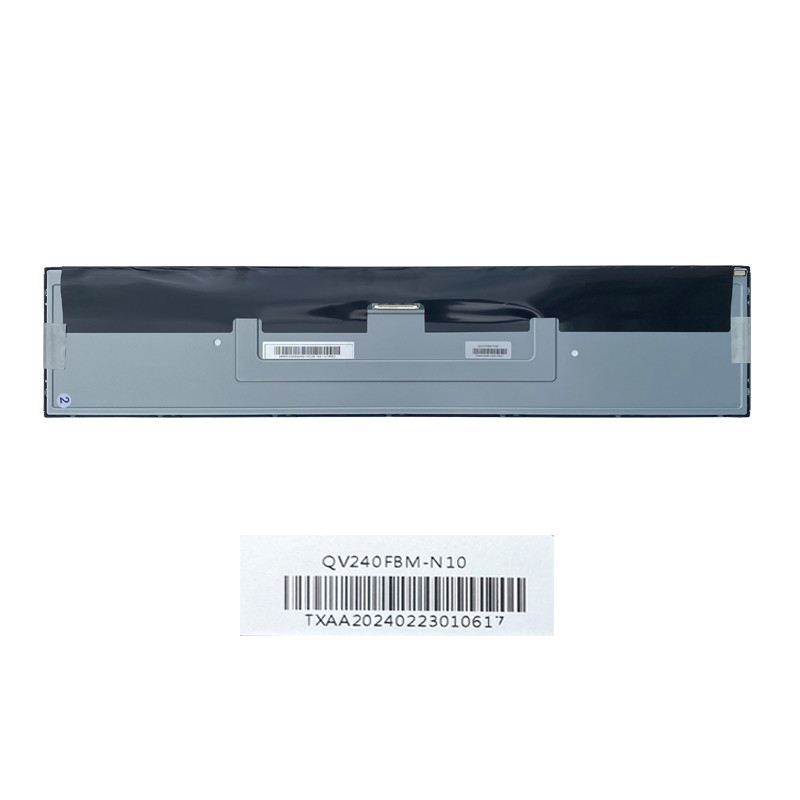

The QV240FBM-N10 is a 24.0 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, Bar Display, Reverse I/F, Matte , Energy Star 6.0 Compliance. Based on its features, Panelook recommend that this model be applied to Digital Signage, Stretched Bar LCD etc

Brand: BOE
Model P/N: QV240FBM-N10

Diagonal Size: 24.0" (1/3 cut of 27.0")
Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920(RGB)×360 81PPI
Pixel Format: RGB Vertical Stripe

Active Area: 597.888(W)×112.104(H) mm
Bezel Opening: -

Outline Size: 612.7(W)×132.1(H) ×13.3(D) mm
Surface: Antiglare (Haze 25%)

Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Display Mode: ADS, Normally Black, Transmissive

Best View on: Symmetry
Response Time: 30 (Typ.)(Tr+Td)

Display Colors: 16.7M 72% NTSC
Lamp Type: WLED , 30K hours , Without Driver

Frequency: 60Hz Touch Screen; Without

Panel Weight: 1.35Kgs (Typ.)
Application

Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector

Input Voltage: 5.0V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
