Product Details
Place of Origin: China
Model Number: LQ091B1LW01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Resolution: |
822(RGB)×260 |
Luminance: |
380 Cd/m² (Typ.) |
Viewing Angle: |
85/85/85/85 (Typ.)(CR≥10) |
Interface Type: |
LVDS (1 Ch, 8-bit) , Connector 30 Pins |
Operating Temp.: |
-10 ~ 70 °C |
Storage Temp.: |
-30 ~ 70 °C |
Resolution: |
822(RGB)×260 |
Luminance: |
380 Cd/m² (Typ.) |
Viewing Angle: |
85/85/85/85 (Typ.)(CR≥10) |
Interface Type: |
LVDS (1 Ch, 8-bit) , Connector 30 Pins |
Operating Temp.: |
-10 ~ 70 °C |
Storage Temp.: |
-30 ~ 70 °C |

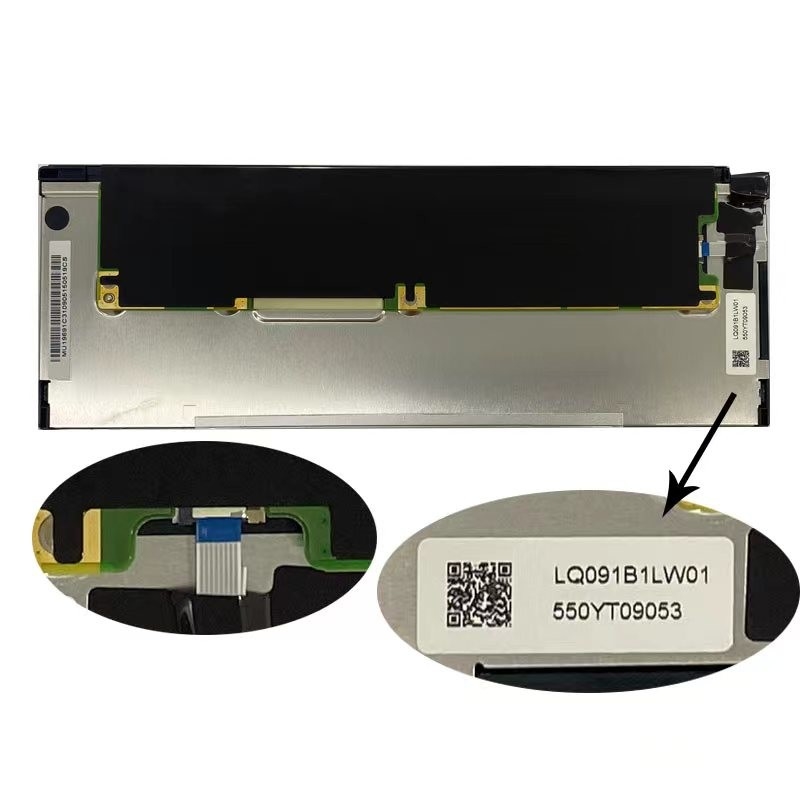

9.1Inch Resolution 822(RGB)×260 Lcd Panel LQ091B1LW01 for Industry and Gaming Application
LQ091B1LW01 is a 9.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Bar Display, 180° Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial, Stretched Bar LCD, Gaming etc
