Product Details
Place of Origin: China
Model Number: AA078AA01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Resolutiion: |
800(RGB)×300, HSVGA |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Interface Type: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |
Resolutiion: |
800(RGB)×300, HSVGA |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Interface Type: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temperature: |
-30 ~ 80 °C |
Storage Temperature: |
-30 ~ 80 °C |

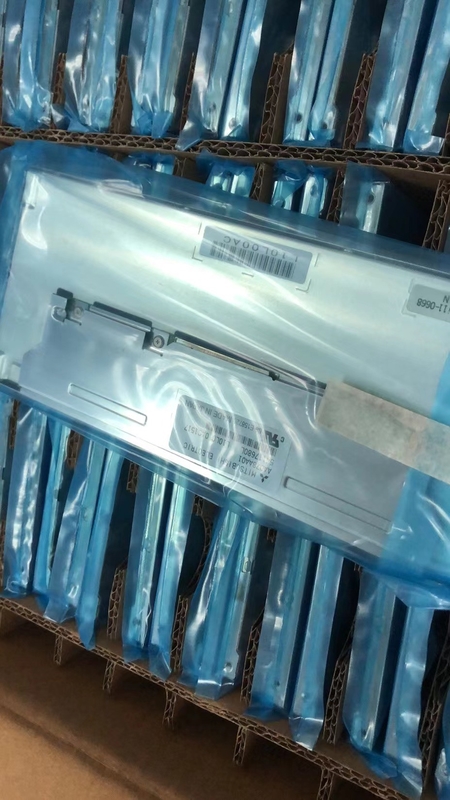

7.8Inch resolution 800(RGB)×300 Lcd Paenl AA078AA01 for Industrial application
AA078AA01 is a 7.8" diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 100K hours, With LED Driver, Bar Display, 180° Reverse, 6/8 bit, Matte , NCM, Landscape view. Based on its features, Panelook recommend that this model be applied to Industrial, Stretched Bar LCD etc
| Outline Dim. | 207(H)×86(V) ×10.5(D) mm | Treatment | Antiglare, Hard coating (3H) |
|---|---|---|---|
| Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Operating Mode | SWV, Normally Black, Transmissive  |
| Support Color | 262K/16.7M 72% NTSC | Light Source | WLED , 100K hours , With LED Driver |
| Weight | 200g (Typ.) | Designed For | |
| Frame Rate | 60Hz Touch Panel |
Without | |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector | ||
| Power Supply | 12.0V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | ||
