Highlight:
                                                                                                                                                                                                                                                56.7Inch stretched bar display, stretched bar display 3840X476, Metro bar lcd panel


Size:	57Inch	Resolution:	3840*476
Luminance:	750cd/m2	Interface Type:	V-By-One 51PIN
Working Temp.:	0 ~ 70 °C	Application:	Metro Or Other Digital Signage

Size:	57Inch
Resolution:	3840*476
Luminance:	750cd/m2
Interface Type:	V-By-One 51PIN
Working Temp.:	0 ~ 70 °C
Application:	Metro Or Other Digital Signage

57Inch Stretched Bar Display 3840X476 Metro Bar Lcd Panel

57Inch Resolution 3840*476 Stretched Lcd Panel for Metro application

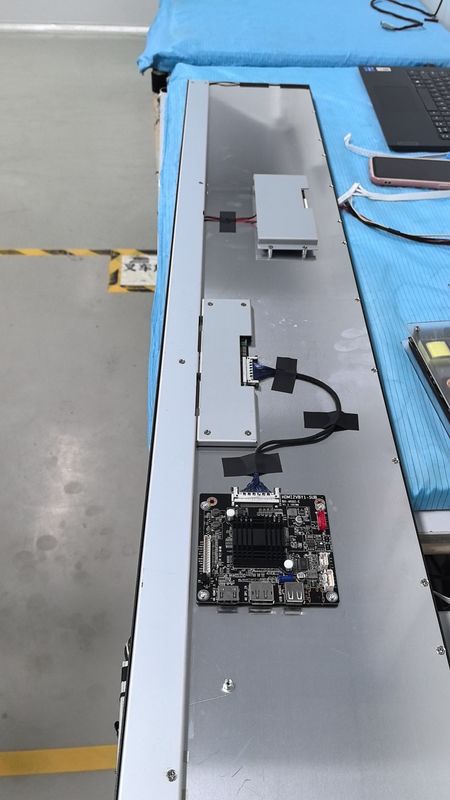

This specification applies to the 57 inch Color TFT-LCD Module . This LCD module has a

TFT active matrix type liquid crystal panel 3840x476 pixels, and diagonal size of 57 inch. This mod

ule supports 3840*476 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which

are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a

10-bit gray scale signal for each dot. The has been designed to apply the V-BY-ONE

interface method. It is intended to support displays where high brightness, wide viewing angle, high color

saturation, and high color depth are very important.
