Home > products > TFT Display Modules > 32inch TFT Display Modules 1920×1080 FHD Lcd Panel 400nits DV320FHM-NN0

32inch TFT Display Modules 1920×1080 FHD Lcd Panel 400nits DV320FHM-NN0

Product Details

Place of Origin: China

Model Number: DV320FHM-NN0

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: factory original packing

Delivery Time: 3-5 working days

Payment Terms: T/T

Supply Ability: 5000pcs/month

Get Best Price
Highlight:

32inch TFT Display Modules

,

1920×1080 FHD Lcd Panel

,

DV320FHM-NN0

Resolution:
1920(RGB)×1080, FHD 69PPI
Luminance:
400 Cd/m² (Typ.)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio:
1200:1 (Typ.) (TM)
Response Time:
8 (Typ.)(G To G)
Application:
Digital Signage
Resolution:
1920(RGB)×1080, FHD 69PPI
Luminance:
400 Cd/m² (Typ.)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio:
1200:1 (Typ.) (TM)
Response Time:
8 (Typ.)(G To G)
Application:
Digital Signage
32inch TFT Display Modules 1920×1080 FHD Lcd Panel 400nits DV320FHM-NN0

32inch Resolution 1920(RGB)×1080, FHD Lcd Panel DV320FHM-NN0 Luminance 400nits For Digital Signage

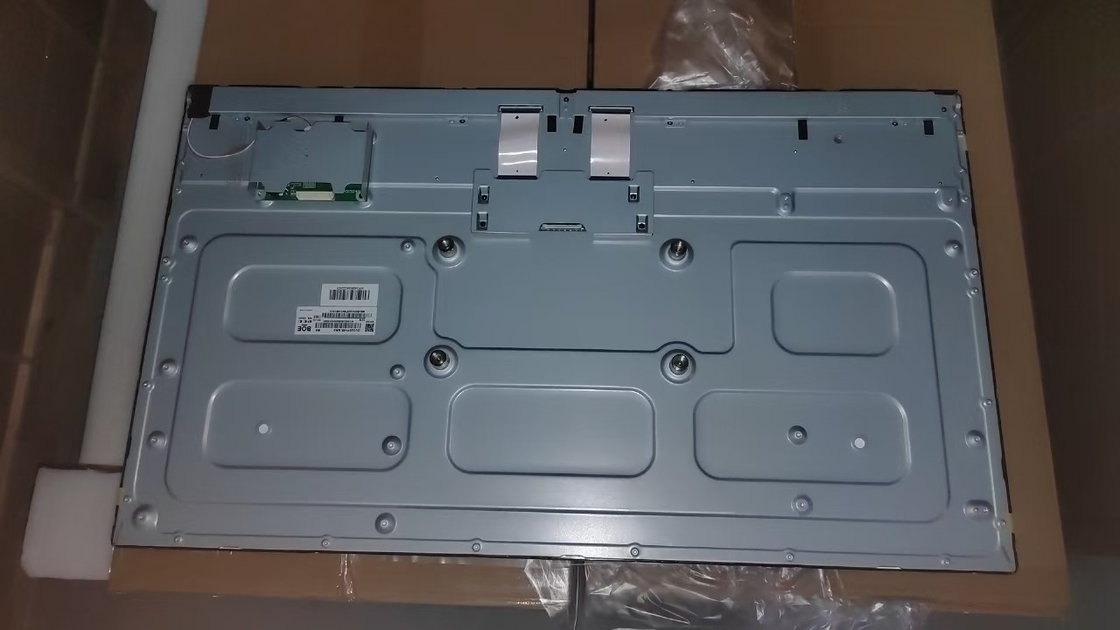

DV320FHM-NN0 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .





Brand
BOE
Model P/N
DV320FHM-NN0
Diagonal Size
32.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD 69PPI
Pixel Format
RGB Vertical Stripe
Active Area
698.4(W)×392.85(H) mm
Bezel Opening
-
Outline Size
716.2(W)×415.05(H) mm
Surface
Antiglare (Haze 1%)
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10) 32inch TFT Display Modules 1920×1080 FHD Lcd Panel 400nits DV320FHM-NN0 0
Display Mode
ADSDS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
8 (Typ.)(G to G)
Display Colors
16.7M 72% NTSC
Lamp Type
WLED , 30K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
4.00Kgs (Typ.)
Application
32inch TFT Display Modules 1920×1080 FHD Lcd Panel 400nits DV320FHM-NN0 2
Signal Interface
LVDS (2 ch, 8-bit) , 51 pins Connector
Input Voltage
12.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
