Product Details
Place of Origin: China
Model Number: MV270FHM-N20
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 2000pcs/month
Size: |
27inch |
Resolution: |
1920(RGB)×1080, FHD |
Luminance: |
300 Cd/m² (Typ.) |
Viewing Angle: |
89/89/89/89 (Typ.)(CR≥10) |
Signal Type: |
LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Operating Temp.: |
0 ~ 50 °C |
Storage Temp: |
-20 ~ 60 °C |
Response: |
14 (Typ.)(G To G) Ms |
Application: |
Desktop Monitor |
Size: |
27inch |
Resolution: |
1920(RGB)×1080, FHD |
Luminance: |
300 Cd/m² (Typ.) |
Viewing Angle: |
89/89/89/89 (Typ.)(CR≥10) |
Signal Type: |
LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Operating Temp.: |
0 ~ 50 °C |
Storage Temp: |
-20 ~ 60 °C |
Response: |
14 (Typ.)(G To G) Ms |
Application: |
Desktop Monitor |
27Inch Resolution 1920(RGB)×1080, FHD LVDS Interface Lcd Panel MV270FHM-N20 for Desktop Monitor Application

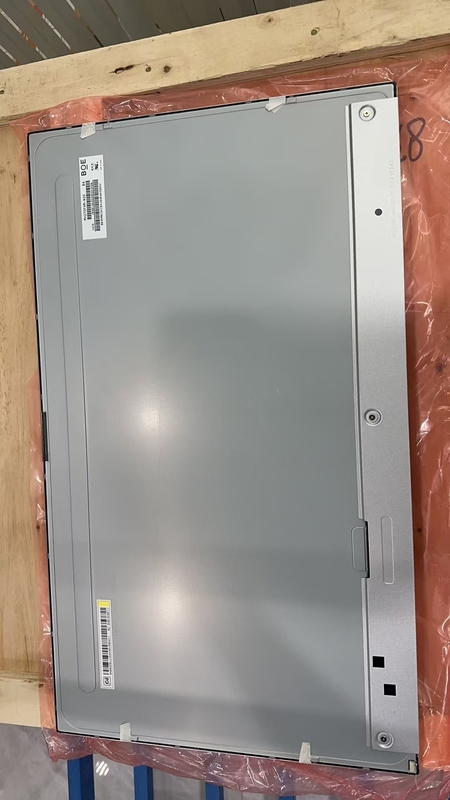

MV270FHM-N20 is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, Reverse I/F, Matte , B5 ES7.0 Version 18.32W, B4 ES8.0 Version 15.86W. Based on its features, JB recommend that this model be applied to Desktop Monitor etc
