Product Details
Place of Origin: China
Model Number: TX13D200VM5BAA
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
5Inch |
Resolution: |
640(RGB)×480 |
Luminance: |
600 Cd/m² (Typ.) |
Viewing Angle: |
80/80/80/80 (Typ.)(CR≥10) |
Signal Interface: |
CMOS (1 Ch, 6-bit) , 40 Pins Connector |
Operating Temp.: |
-30 ~ 80 °C |
Storage Temp.: |
-30 ~ 80 °C |
Vibration Level:: |
2.0G (19.6 M/s²) |
Size: |
5Inch |
Resolution: |
640(RGB)×480 |
Luminance: |
600 Cd/m² (Typ.) |
Viewing Angle: |
80/80/80/80 (Typ.)(CR≥10) |
Signal Interface: |
CMOS (1 Ch, 6-bit) , 40 Pins Connector |
Operating Temp.: |
-30 ~ 80 °C |
Storage Temp.: |
-30 ~ 80 °C |
Vibration Level:: |
2.0G (19.6 M/s²) |

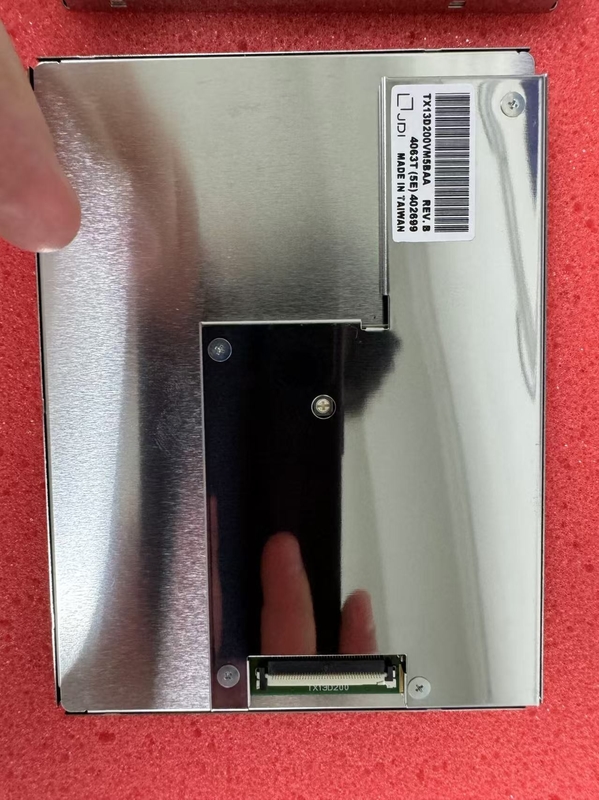

5Inch resolution 640(RGB)×480 TFT Module TX13D200VM5BAA for Industry Application
The TX13D200VM5BAA is a 5.0 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, U/D,L/R Reverse, Matte , IPS-Like. Based on its features, Panelook recommend that this model be applied to Industrial etc.
| Outline Size | 119.4(W)×89.1(H) ×9.8(D) mm | Surface | Antiglare |
|---|---|---|---|
| Brightness | 600 cd/m² (Typ.) | Contrast Ratio | 350:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive  |
| Best View on | - | Response Time | 45 (Max.)(Tr+Td) |
| Display Colors | 262K 60% NTSC | Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz Touch Screen |
Without | |
| Panel Weight | 110g (Typ.) | Application | |
| Signal Interface | CMOS (1 ch, 6-bit) , 40 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) | ||
