Product Details
Place of Origin: China
Model Number: G104XVN01.0
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
10.4inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
470 Cd/m² (Typ.) |
Viewing Angle: |
89/89/89/89 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temp.: |
-30 ~ 80 °C |
Storage Temp.:: |
-30 ~ 80 °C |
Application: |
Industrial Application |
Size: |
10.4inch |
Resolution: |
1024(RGB)×768, XGA |
Luminance: |
470 Cd/m² (Typ.) |
Viewing Angle: |
89/89/89/89 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
Operating Temp.: |
-30 ~ 80 °C |
Storage Temp.:: |
-30 ~ 80 °C |
Application: |
Industrial Application |
10.4Inch resolution 1024(RGB)×768, XGA Operating Temp.: -30 ~ 80 °C Lcd Panel G104XVN01.0 for Industrial use

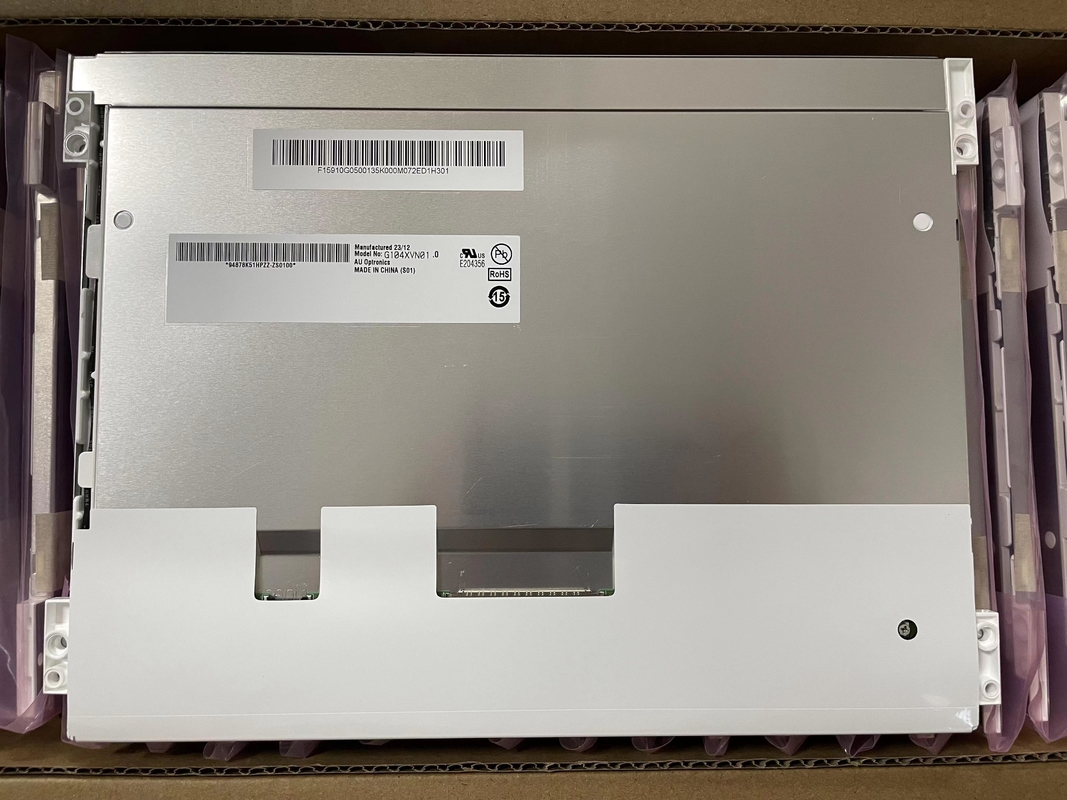

G104XVN01.0 is a 10.4" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial etc
