Product Details
Place of Origin: China
Model Number: TM101JVHG32-01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: factory original packing
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Size: |
10.1inch |
Resolution: |
1280(RGB)×800, WXGA |
Luminance: |
850 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-20 ~ 70 °C |
Storage Temp: |
-30 ~ 80 °C |
Touch Type: |
PCAP Touch |
Application: |
Industry Application |
Size: |
10.1inch |
Resolution: |
1280(RGB)×800, WXGA |
Luminance: |
850 Cd/m² (Typ.) |
Viewing Angle: |
88/88/88/88 (Typ.)(CR≥10) |
Signal Interface: |
LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
Operating Temp.:: |
-20 ~ 70 °C |
Storage Temp: |
-30 ~ 80 °C |
Touch Type: |
PCAP Touch |
Application: |
Industry Application |

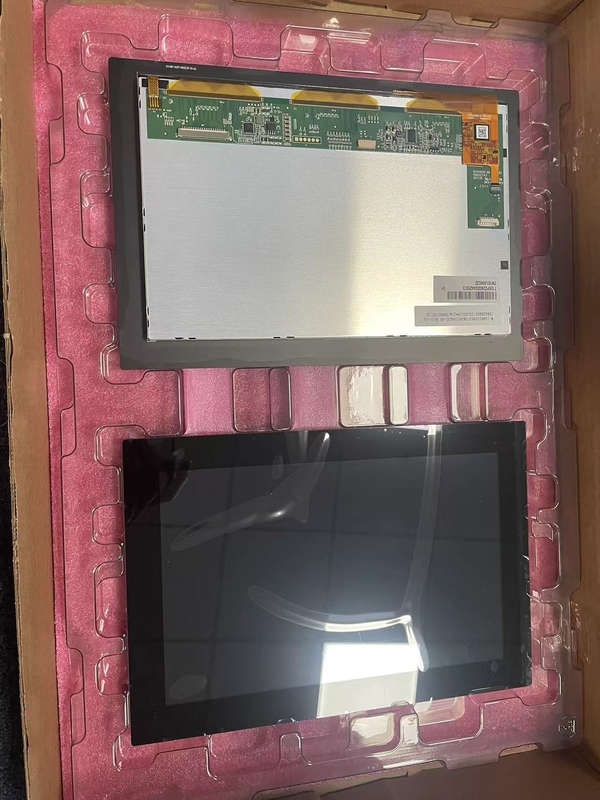

10.1Inch 1280(RGB)×800, WXGA , 850Nits brightness Lcd Panel TM101JVHG32-01 LVDS Interface for Industrial use
TM101JVHG32-01 is a 10.1 inch diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, With LED Driver , touchscreen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: With Touch, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, 6/8 bit , CTP Driver IC:ILI2511. Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness etc.
